RFID HF & UHF
TECHNOLOGY

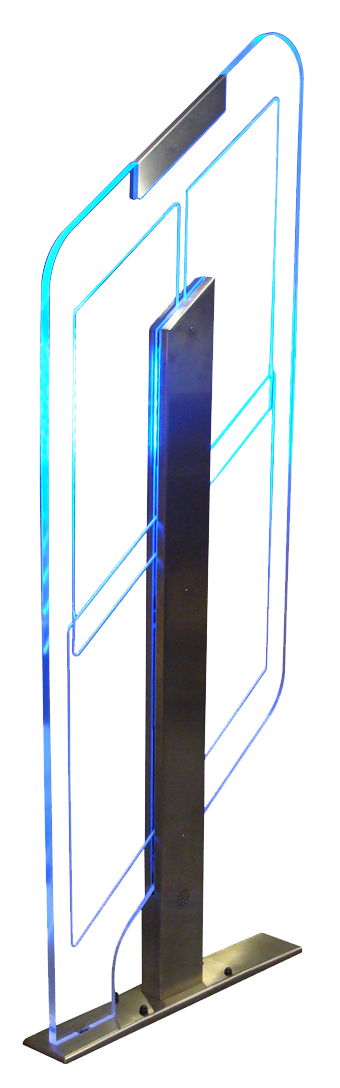

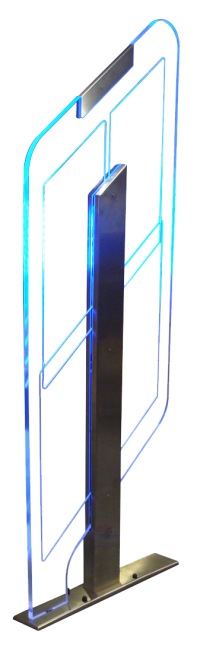

Diamond HF RFID Premium
RFID SECURITY DETECTION SYSTEM
With its modern transparent looks – high density plexiglas in combination with a solid stainless steel construction – the Diamond RFID Premium system gives an extremely luxurious appearance to any library environment.
The Diamond RFID Premium system reduces unauthorized removal of library items by detection RFID labels in any orientation.
- Fully digital configuration (DSP)
- Visual and audio alarm
- Advanced radio frequent identification (RFID) technology
- Remote access
- Magnetic media safe
- Multiple gate solutions are possible
- Bi-Directional people counter with display
Dimensions:
Antenna: 600 x 20 x 1880 mm (w x d x h)
Base : 705 x 120 x 20 mm (w x d x h)
Weight: 32 kg
Detection:
Depending on environment and the size & type of tag:
• Single aisle width System 2: up to 1.60 meter
• Dual aisle width System 3: up to 3.20 meter
RFID specification:
Operating frequency: 13,56 MHz.
Transmitting power: 3 W
Supported tags: ISO 15693, NXP SLI and NXP SLI X
Certifications: CE / EMC
Interface:
CAN
Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool.
Material:
Panel: High density clear PMMA 20mm plexiglas, weather and UV resistant,
92% light transmission
Base : Stainless steel
Diamond HF RFID Premium
RFID SECURITY DETECTION SYSTEM
With its modern transparent looks – high density plexiglas in combination with a solid stainless steel construction – the Diamond RFID Premium system gives an extremely luxurious appearance to any library environment.
The Diamond RFID Premium system reduces unauthorized removal of library items by detection RFID labels in any orientation.
- Fully digital configuration (DSP)
- Visual and audio alarm
- Advanced radio frequent identification (RFID) technology
- Remote access
- Magnetic media safe
- Multiple gate solutions are possible
- Bi-Directional people counter with display
Dimensions:
Antenna: 600 x 20 x 1880 mm (w x d x h)
Base : 705 x 120 x 20 mm (w x d x h)
Weight: 32 kg
Detection:
Depending on environment and the size & type of tag:
• Single aisle width System 2: up to 1.60 meter
• Dual aisle width System 3: up to 3.20 meter
RFID specification:
Operating frequency: 13,56 MHz.
Transmitting power: 3 W
Supported tags: ISO 15693, NXP SLI and NXP SLI X
Certifications: CE / EMC
Interface:
CAN
Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool.
Material:
Panel: High density clear PMMA 20mm plexiglas, weather and UV resistant,
92% light transmission
Base : Stainless steel

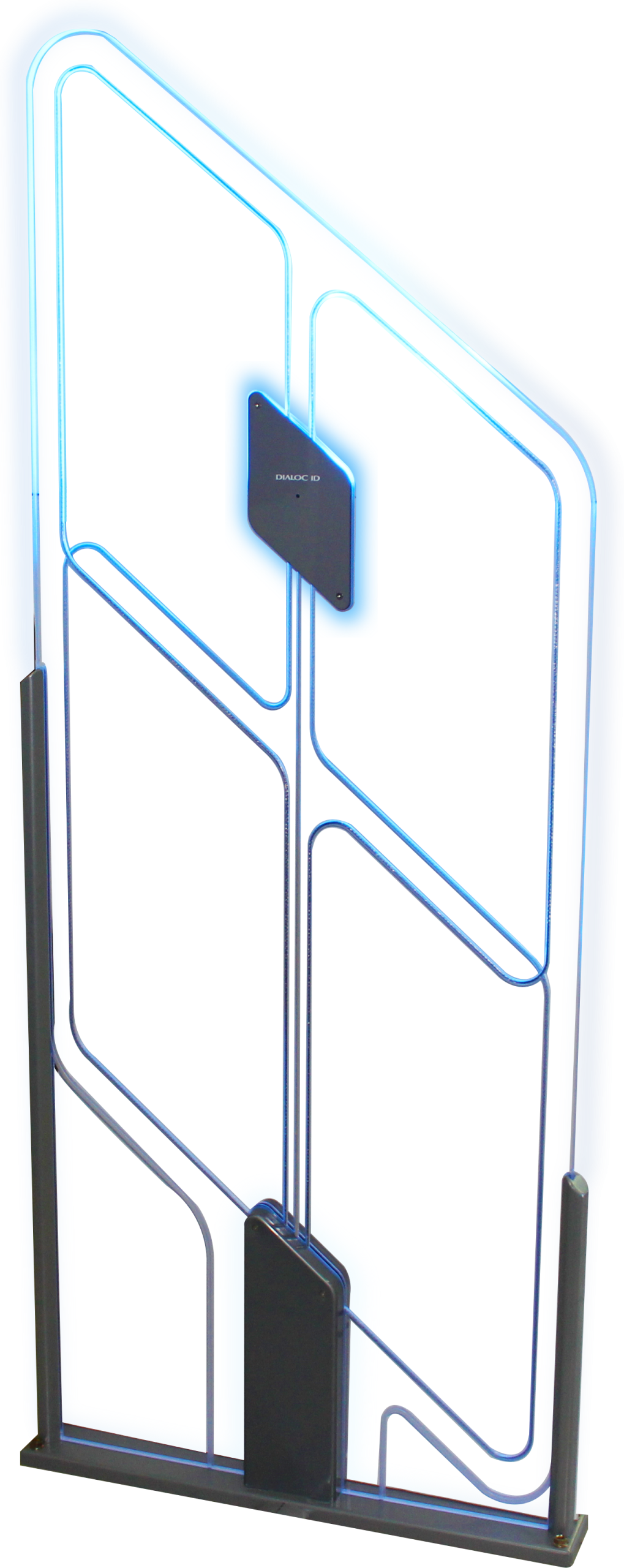

Quartz RFID
RFID security detection system
With its transparent looks – high density plexiglas in combination with a solid powdercoated stainless steel base construction – the Quartz RFID system is a great solution for a modern any library environment.
The Quartz RFID system reduces unauthorized removal of library items by detection RFID tags in any orientation.
Dimensions:
Antenna: 657,5 x 15 x 1731 mm (w x d x h)
Base : 709 x 96 x 10 mm (w x d x h)Weight: 22 kg
Detection:
Depending on environment and the size & type of tag:
• Single aisle width System 2: up to 1.60 meter
• Dual aisle width System 3: up to 3.20 meterRFID specification:
Operating frequency: 13,56 MHz.
Transmitting power: 3 W
Supported tags: ISO 15693, NXP SLI and NXP SLI XCertifications: CE / EMC
Option:
• Bi-directional people counter with displayInterfaces:
CAN, Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool (optional)Material:
Panel: High density clear PMMA 15 mm plexiglas, weather and UV resistant,
92% light transmission
Base : Powdercoated stainless steel
- fully digital configuration (DSP)
- visual and audio alarm
- advanced radio frequent identification (RFID) technology
- remote access
- magnetic media safe
- multiple gate solutions are possible
Quartz RFID
RFID security detection system
With its transparent looks – high density plexiglas in combination with a solid powdercoated stainless steel base construction – the Quartz RFID system is a great solution for a modern any library environment.
The Quartz RFID system reduces unauthorized removal of library items by detection RFID tags in any orientation.
Dimensions:
Antenna: 657,5 x 15 x 1731 mm (w x d x h)
Base : 709 x 96 x 10 mm (w x d x h)Weight: 22 kg
Detection:
Depending on environment and the size & type of tag:
• Single aisle width System 2: up to 1.60 meter
• Dual aisle width System 3: up to 3.20 meterRFID specification:
Operating frequency: 13,56 MHz.
Transmitting power: 3 W
Supported tags: ISO 15693, NXP SLI and NXP SLI XCertifications: CE / EMC
Option:
• Bi-directional people counter with displayInterfaces:
CAN, Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool (optional)Material:
Panel: High density clear PMMA 15 mm plexiglas, weather and UV resistant,
92% light transmission
Base : Powdercoated stainless steel
- fully digital configuration (DSP)
- visual and audio alarm
- advanced radio frequent identification (RFID) technology
- remote access
- magnetic media safe
- multiple gate solutions are possible

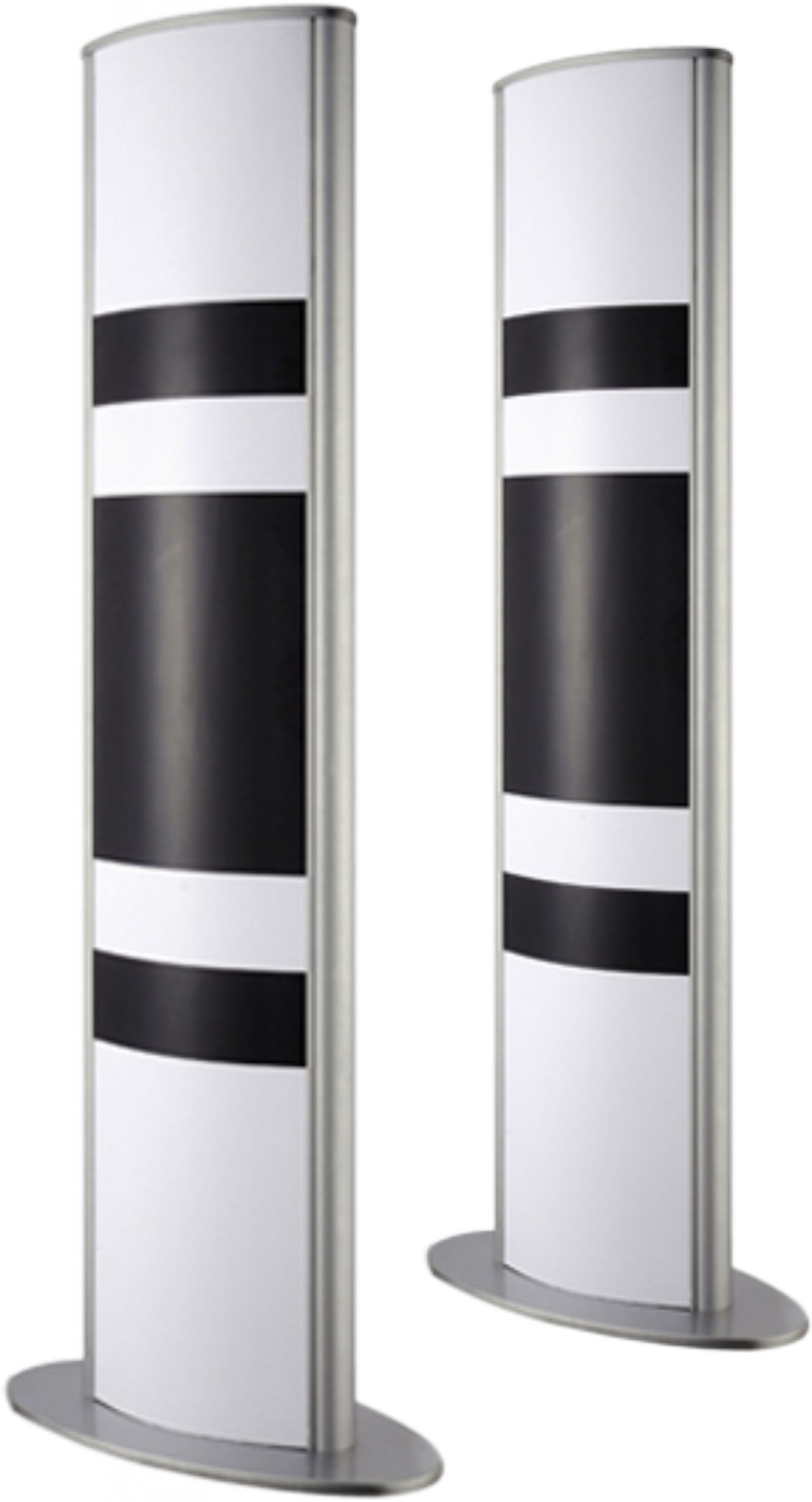

Smart ST UHF Detection System
The Smart ST UHF Detection System is specially developed to be installed in libraries. It’s streamline and futuristic design integrates seamlessly into any environment and ambience.
The Smart ST UHF Detection System made of high quality Polycarbonate casing to provide a high class visual experience.
The Smart ST UHF Detection System accurately identifies unauthorized removals of library materials. The system takes full advantage of the latest advancements in the field of 3D detection technology in both electronics sophistication and antenna design.
The Smart ST UHF Detection System in this form provides the best detection system for security.
– European make and technology
– Fully digital configuration (DSP)
– LED Visual and audio alarm
– Advanced 3D Detection Technology
– Switch Capacitor Filtering (SCF)
– Magnetic Media Safe
– Multiple gate solutions are possible by simple additions and networking
– 3D Digital Detection
– X,Y,Z – Axes Detection
– Built-in People Counter
– Statistics Report
– Between 3ft. – 10ft. Aisle widths, depending on the type and size of UHF tags used
– Very high and accurate detection
– Eliminates phantom trigger
Smart ST UHF Detection System
The Smart ST UHF Detection System is specially developed to be installed in libraries. It’s streamline and futuristic design integrates seamlessly into any environment and ambience.
The Smart ST UHF Detection System made of high quality Polycarbonate casing to provide a high class visual experience.
The Smart ST UHF Detection System accurately identifies unauthorized removals of library materials. The system takes full advantage of the latest advancements in the field of 3D detection technology in both electronics sophistication and antenna design.
The Smart ST UHF Detection System in this form provides the best detection system for security.
– European make and technology
– Fully digital configuration (DSP)
– LED Visual and audio alarm
– Advanced 3D Detection Technology
– Switch Capacitor Filtering (SCF)
– Magnetic Media Safe
– Multiple gate solutions are possible by simple additions and networking
– 3D Digital Detection
– X,Y,Z – Axes Detection
– Built-in People Counter
– Statistics Report
– Between 3ft. – 10ft. Aisle widths, depending on the type and size of UHF tags used
– Very high and accurate detection
– Eliminates phantom trigger
Smart Staff Station
Smart Staff Station is designed as a very flat and external antenna for contactless data exchange with common HF transponders and its attractive with its outstanding performance and modern design.
With these features, the antenna is suitable for desktop applications in offices and libraries to trace files or documents and to detect lendable items at the checkout or return point. The read range with single transponders could reach more than 30 cm.
The ELIAS Smart Staff Station is designed as a very flat antenna with an integrated reader for contactless data exchange with ISO 15693 transponders and is attractive with its outstanding performance and modern design.
- Read range more than 30 cm
- Optical feedback via LED
- No detuning of the antenna when installing on metal or rather conductive material
- Available as an external antenna or with integrated reader
Dimensions: 376 mm (W) x 276 mm (H) x 27 mm (D)
Weight: 2 kg
Protection Glass: IP 30
Temperature Range
• Operation: -25C up to 55C
• Storage: -25C up to 70C
Operating frequency: 13.56 MHz
Power: 1,5 W +/- 1 dB
Voltage: 24 VDC
Interface: USB, LAN Material
Housing:
• Pad – Acrylic Glass
• Upper Part – Plastic SB
• Lower Part – Zinced Steel
Supported Transponders – ISO 15693,
ISO 18000-3 MODE 1
Smart Staff Station
Smart Staff Station is designed as a very flat and external antenna for contactless data exchange with common HF transponders and its attractive with its outstanding performance and modern design.
With these features, the antenna is suitable for desktop applications in offices and libraries to trace files or documents and to detect lendable items at the checkout or return point. The read range with single transponders could reach more than 30 cm.
The ELIAS Smart Staff Station is designed as a very flat antenna with an integrated reader for contactless data exchange with ISO 15693 transponders and is attractive with its outstanding performance and modern design.
- Read range more than 30 cm
- Optical feedback via LED
- No detuning of the antenna when installing on metal or rather conductive material
- Available as an external antenna or with integrated reader
Dimensions: 376 mm (W) x 276 mm (H) x 27 mm (D)
Weight: 2 kg
Protection Glass: IP 30
Temperature Range
• Operation: -25C up to 55C
• Storage: -25C up to 70C
Operating frequency: 13.56 MHz
Power: 1,5 W +/- 1 dB
Voltage: 24 VDC
Interface: USB, LAN Material
Housing:
• Pad – Acrylic Glass
• Upper Part – Plastic SB
• Lower Part – Zinced Steel
Supported Transponders – ISO 15693,
ISO 18000-3 MODE 1
Smart UHF RFID Desktop Reader
Desktop reader is the latest product developed by us, which can read and write tags in accordance with ISO18000-6B/ISO180006C (EPC Gen2). It can be used to write tags on access control and other data acquisition system.
• Read & Write Tag protocol : ISO18000-6B, ISO18000-6C
• Can read EPC tags in different bit.(16,32,48,64,80 or 96)
• Can read EPC Data.
• Can read data from user area.
• Can read data from TID area
• Can visit tag and kill password(32bits)
• Can write different bit length EPC code(16,32,48,64,80 and 96)
• Can write data from user area
• Can revise tag visit and kill code(32bits)
• EPC,TID and user area can write protection
• Password section can write protection
• Can kill tag
• Dimension: 200 (L)* 135 (W)* 28 (H) mm
• Support for TCP/IP Ethernet, RS232 serial port, RS485, Wiegand 34, 26 and wireless communication interface
• Operating frequency: 860 ~ 960 MHz (customized)
• FM Mode: by FHSS or fixed frequency launch
• Reading distance: 20 dBm (Adjustable)
• Writing distance: 25 dBm (Adjustable)
• Read distance: up to 1m, (antenna and tag dependent)
• Read rate: 32bits/word, 6ms in time,average
• Write rate: 32bits/word, 50ms in time ,average
• Power supply: DC 9V / 3A (Adapter)
• Working temperature: -20°C – 60°C
• Storage temperature: -40°C – 80°C
• Humidity: 5% to 95%, non-condensing
• Protection grade: IEC IP52
Smart UHF RFID Desktop Reader
Desktop reader is the latest product developed by us, which can read and write tags in accordance with ISO18000-6B/ISO180006C (EPC Gen2). It can be used to write tags on access control and other data acquisition system.
• Read & Write Tag protocol : ISO18000-6B, ISO18000-6C
• Can read EPC tags in different bit.(16,32,48,64,80 or 96)
• Can read EPC Data.
• Can read data from user area.
• Can read data from TID area
• Can visit tag and kill password(32bits)
• Can write different bit length EPC code(16,32,48,64,80 and 96)
• Can write data from user area
• Can revise tag visit and kill code(32bits)
• EPC,TID and user area can write protection
• Password section can write protection
• Can kill tag
• Dimension: 200 (L)* 135 (W)* 28 (H) mm
• Support for TCP/IP Ethernet, RS232 serial port, RS485, Wiegand 34, 26 and wireless communication interface
• Operating frequency: 860 ~ 960 MHz (customized)
• FM Mode: by FHSS or fixed frequency launch
• Reading distance: 20 dBm (Adjustable)
• Writing distance: 25 dBm (Adjustable)
• Read distance: up to 1m, (antenna and tag dependent)
• Read rate: 32bits/word, 6ms in time,average
• Write rate: 32bits/word, 50ms in time ,average
• Power supply: DC 9V / 3A (Adapter)
• Working temperature: -20°C – 60°C
• Storage temperature: -40°C – 80°C
• Humidity: 5% to 95%, non-condensing
• Protection grade: IEC IP52
Smart Work Station
- Mifare / My Kad / magnetic stripe
- Ergonomic and efficient design
- Multifunctional unit which enhances checkout, checkin and renewals procedures at the circulation desk
- Easy to operate by library staff
- RS-232/TCP-1P/USB interface for communication with library circulation software
- Support all HF Tags 13.56 Mhz
- HF RFID reader and antenna ready
- Wear resistant surface to ensure durability and long product life used
- EAS-bit of the RFID tag can be set or reset (RFID security HF – depends on HF Tag used)
- The ID of a book item can be read from the HF RFID tag in the book item (item-ID identification)
- Dual function both for circulation and programming of RFID tags (HF)
- Barcode to RFID conversion (HF)
- 2 in 1 Work Station ( Circulation and Programming)
- FCC and CE certifications for all components used
Isometric View:
Antenna Dimensions:
Height: 155.5 mm
Width: 411.5 mm
Length: 451.0 mm
Weight: 5.0 kg
– The ST HF Smart Staff Work Station can be used for circulation i.e. checkin, check-out, renewals as well as to program the RFID ISO HF tags. It is a dual function smart workstation.
– The ST HF Smart Staff Work Station is designed for (re)activating and deactivating most HF RFID tags commonly used in libraries, like the Dogbone, Alien, Bipolar etc.
– The ST HF Smart Staff Work Station is designed for RFID security (EAS-bit, setting and resetting), and item-ID identification.
– The ST HF Smart Staff Work Station can be designed to support HF RFID & UHF RFID Technologies.
Smart Work Station
- Mifare / My Kad / magnetic stripe
- Ergonomic and efficient design
- Multifunctional unit which enhances checkout, checkin and renewals procedures at the circulation desk
- Easy to operate by library staff
- RS-232/TCP-1P/USB interface for communication with library circulation software
- Support all HF Tags 13.56 Mhz
- HF RFID reader and antenna ready
- Wear resistant surface to ensure durability and long product life used
- EAS-bit of the RFID tag can be set or reset (RFID security HF – depends on HF Tag used)
- The ID of a book item can be read from the HF RFID tag in the book item (item-ID identification)
- Dual function both for circulation and programming of RFID tags (HF)
- Barcode to RFID conversion (HF)
- 2 in 1 Work Station ( Circulation and Programming)
- FCC and CE certifications for all components used
Isometric View:
Antenna Dimensions:
Height: 155.5 mm
Width: 411.5 mm
Length: 451.0 mm
Weight: 5.0 kg
– The ST HF Smart Staff Work Station can be used for circulation i.e. checkin, check-out, renewals as well as to program the RFID ISO HF tags. It is a dual function smart workstation.
– The ST HF Smart Staff Work Station is designed for (re)activating and deactivating most HF RFID tags commonly used in libraries, like the Dogbone, Alien, Bipolar etc.
– The ST HF Smart Staff Work Station is designed for RFID security (EAS-bit, setting and resetting), and item-ID identification.
– The ST HF Smart Staff Work Station can be designed to support HF RFID & UHF RFID Technologies.
Smart Handheld Reader
Smart Handheld Reader Comes in HF or UHF models. It has lightweight, ergonomics design. It comes with built in WIFI and optional Bluetooth. It has Industry-leading read range. It can connect through Plug and Play PPT connectivity. It is portable & reliable. The Smart Handheld Reader Powered by ELIAS Inventory Control and Management System (ICMS)
- Variety of modules are optional
- Support EPC Class 1 Gen2/ ISO 18000 – 6C
- Adjustable output power, range: 16 dBm – 30 dBm
Work range is longer than 7m (based on tag size) - Wi-Fi 802.11 b/g/n is integrated
- Ergonomic hand grip design, easy holding, less tired
- 4000mAh @ 3.7V for 4 hours normal or 20 days standby
- CPU: 624 MHz High-speed ARM platform
- Storage Card: support up to 32G Micro SD Card
- Operating System: Windows CE 6.0
- Barcode Scan: 1-D module: Symbol SE955; 2-D module: Honeywell 5180
- Battery : (4000mAh@3.7V) rechargeable lithium battery
- Display: 4’’ 480 x 800 TFT-LCD with resistor type touch screen, backlight adjustable
- Audio: Built-in 0.5W speaker
- USB port : USB Slave
- Communication : WLAN 802.11 b/g/n
- Bluetooth: version 2.0, support class2 standard (only for non-GPS model)
- Optional Expansion Module: GPRS, GPS, 2.4G
- Accessories: 12V/3A charging dock, USB cable
Smart Handheld Reader
Smart Handheld Reader Comes in HF or UHF models. It has lightweight, ergonomics design. It comes with built in WIFI and optional Bluetooth. It has Industry-leading read range. It can connect through Plug and Play PPT connectivity. It is portable & reliable. The Smart Handheld Reader Powered by ELIAS Inventory Control and Management System (ICMS)
- Variety of modules are optional
- Support EPC Class 1 Gen2/ ISO 18000 – 6C
- Adjustable output power, range: 16 dBm – 30 dBm
Work range is longer than 7m (based on tag size) - Wi-Fi 802.11 b/g/n is integrated
- Ergonomic hand grip design, easy holding, less tired
- 4000mAh @ 3.7V for 4 hours normal or 20 days standby
- CPU: 624 MHz High-speed ARM platform
- Storage Card: support up to 32G Micro SD Card
- Operating System: Windows CE 6.0
- Barcode Scan: 1-D module: Symbol SE955; 2-D module: Honeywell 5180
- Battery : (4000mAh@3.7V) rechargeable lithium battery
- Display: 4’’ 480 x 800 TFT-LCD with resistor type touch screen, backlight adjustable
- Audio: Built-in 0.5W speaker
- USB port : USB Slave
- Communication : WLAN 802.11 b/g/n
- Bluetooth: version 2.0, support class2 standard (only for non-GPS model)
- Optional Expansion Module: GPRS, GPS, 2.4G
- Accessories: 12V/3A charging dock, USB cable
