ELECTROMAGNETIC (EM)
TECHNOLOGY

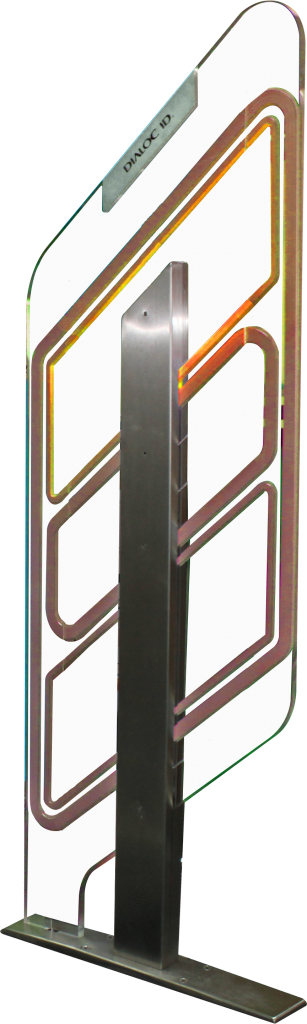

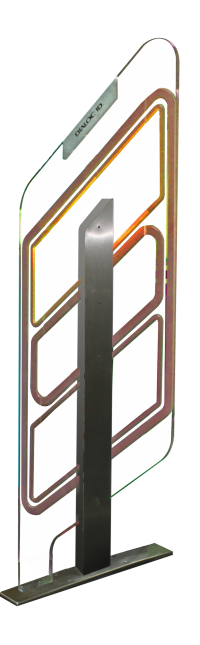

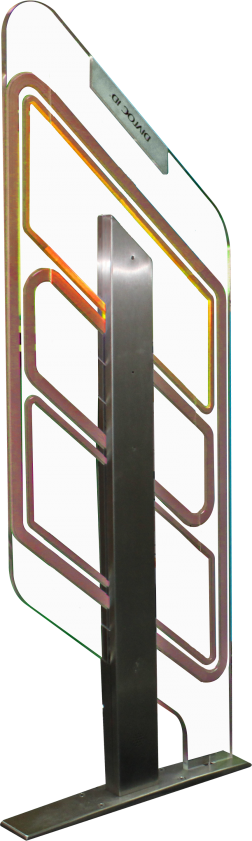

Diamond EM Premium Plus
With its modern transparent looks – high density plexiglas in combination with a solid stainless steel construction – the Diamond EM Premium Plus system gives an extremely luxurious appearance to any library environment.
The Diamond EM Premium Plus system reduces unauthorized removal of library items by detecting the EM tags in any orientation.
- Fully digital configuration (DSP)
- Visual and audio alarm
- Advanced electromagnetic EM technology
- Remote access
- magnetic media safe
- Multiple gate solutions are possible
- Bi-Directional people counter with display
Dimensions:
Antenna: 655 x 20 x 1900 mm (w x d x h)
Base : 705 x 120 x 20 mm (w x d x h)
Weight: 37 kg
Detection:
Depending on the type and size of EM tag
• Single aisle width System 2: up to 0.90 meter
• Dual aisle width System 3 : up to 1.80 meter
EM specification:
Operating frequency: 366 Hz.
Supported tags: all Dialoc ID EM tags and various EM tag suppliers
Certifications: CE / EMC
Interface:
CAN
Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool.
Material:
Panel: High density clear PMMA 20mm plexiglas, weather and UV resistant,
92% light transmission
Base : Stainless steel

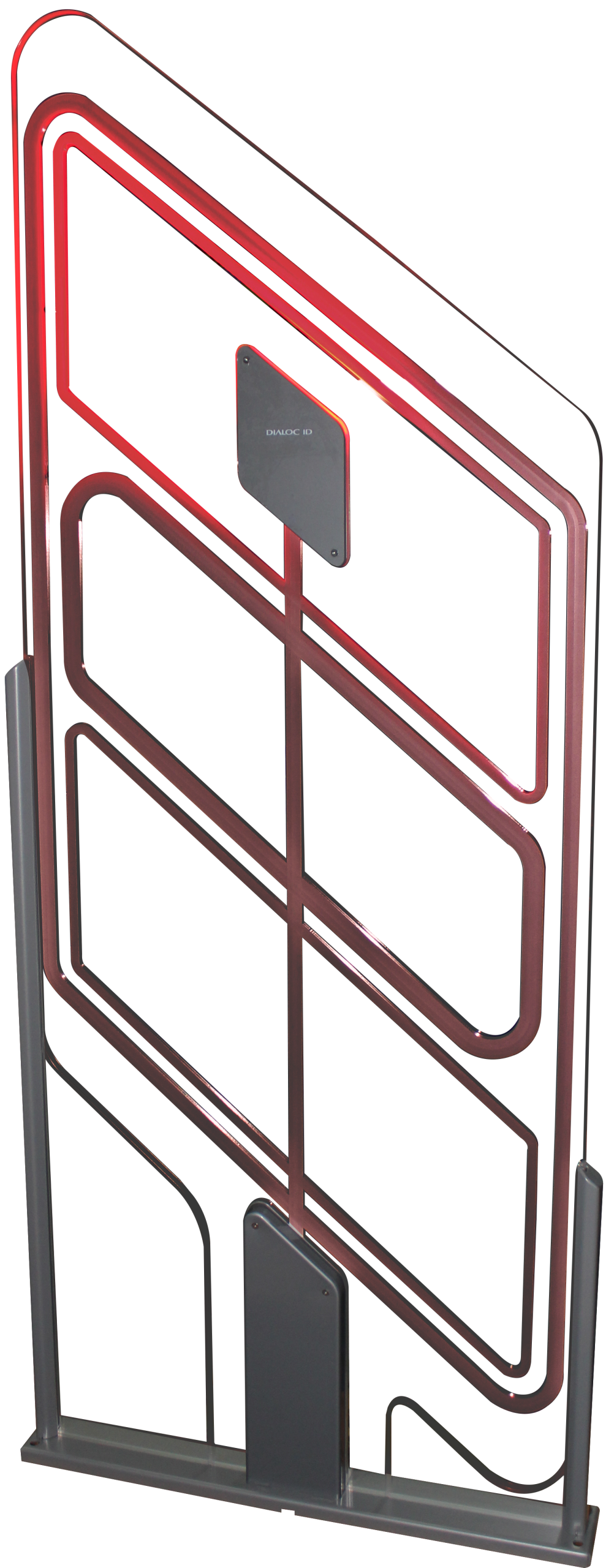

Quartz EM
With its sandwiched plexiglass plates in combination with a solid stainless steel powder coated base construction, the Quartz EM system is a great answer to a modern library environment.
The Quartz EM system reduces unauthorized removal of library items by detecting the EM tags in any orientation
- Fully digital configuration (DSP)
- Visual and audio alarm
- Advanced electromagnetic (EM) technology
- Remote access
- Magnetic media safe
- Multiple gate solutions are possible
Dimensions:
Antenna: 657,5 x 18 x 1731 mm (w x d x h)
Base : 709 x 96 x 10 mm (w x d x h)
Weight: 28 kg
Detection:
Depending on the type and size of EM tag
• Single aisle width System 2: up to 0.90 meter
• Dual aisle width System 3 : up to 1.80 meter
EM specification:
Operating frequency: 366 Hz.
Supported tags: all Dialoc ID EM tags and various EM tag suppliers
Certifications: CE / EMC
Option:
• Bi-directional people counter with display
Interface:
CAN, Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool (optional).
Material:
Panel: Sandwichplate of PMMA 18mm plexiglass, weather and UV resistant,
92% light transmission
Base : Powder coated stainless steel

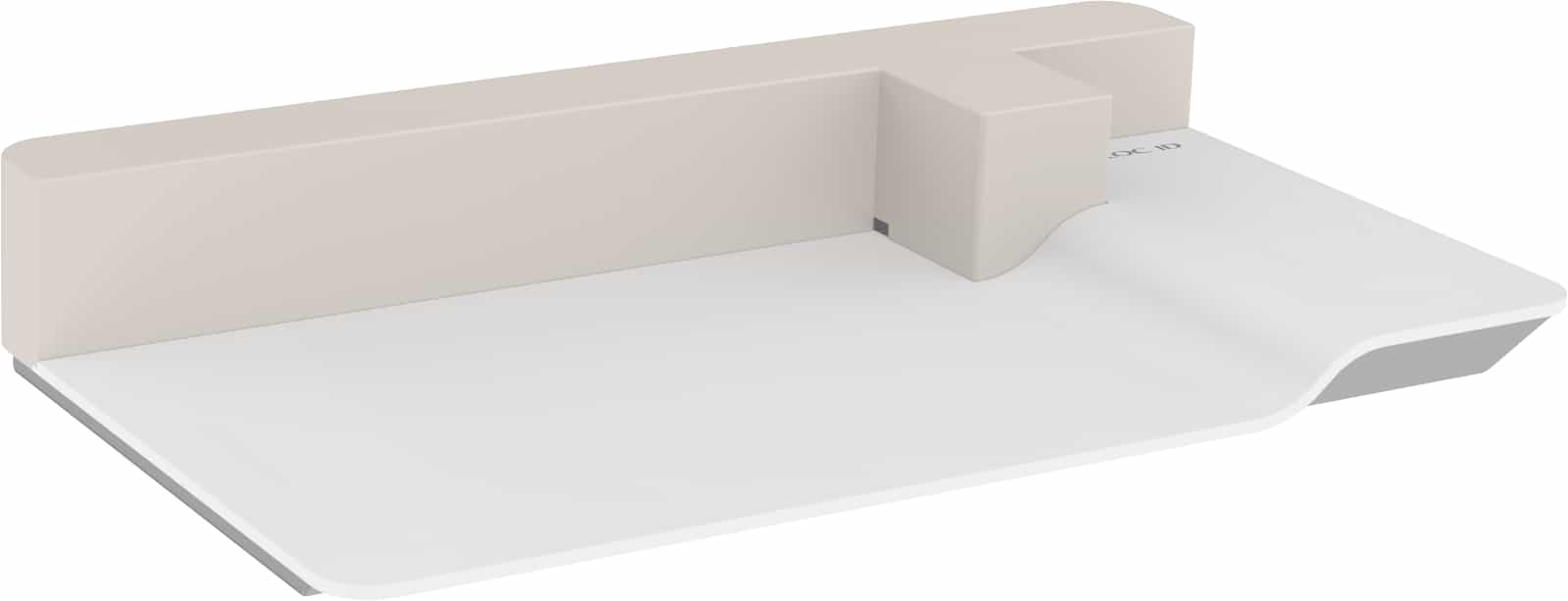

Sapphire Staff Station
CIRCULATION SYSTEM
The Sapphire Staff station series is designed for converting, programming and identifying library labels in books, magazines etc.
Seamless integration of technologies
The Sapphire EM Staff station is a fast and efficient solution for (de)activation of EM tail tags, commonly in use in libraries.
The Sapphire EM Staff station can operate as stand-alone or in host mode
The ergonomic design, the use of sustainable materials and the capacitive touch panel guarantee perfect use of this unit. By using LIS (LED Information Service) the unit gives detailed status information to the user about the status of the working process.
Dimensions:
- Height: 112 mm
- Width : 544 mm
- Depth : 358 mm
Material: Stainless steel, PS, high-impact composite
Weight: 12 kg
Functions: EM activation / deactivation: Check-in / check-out
Compatibility:
Stand alone / host control mode
USB interface for communication with the library circulation software (LMS)
Check-in / check-out materials: Books / Magazines / Media
Certifications: CE / EMC
Item protection: EM technology (EM tags)
Unit: 12 V DC 2A
Power adapter:
100 – 240V, 0,55-0,3 A
60 / 50 Hz
Environmental facts: Temperature: + 10ºC < > 45ºC

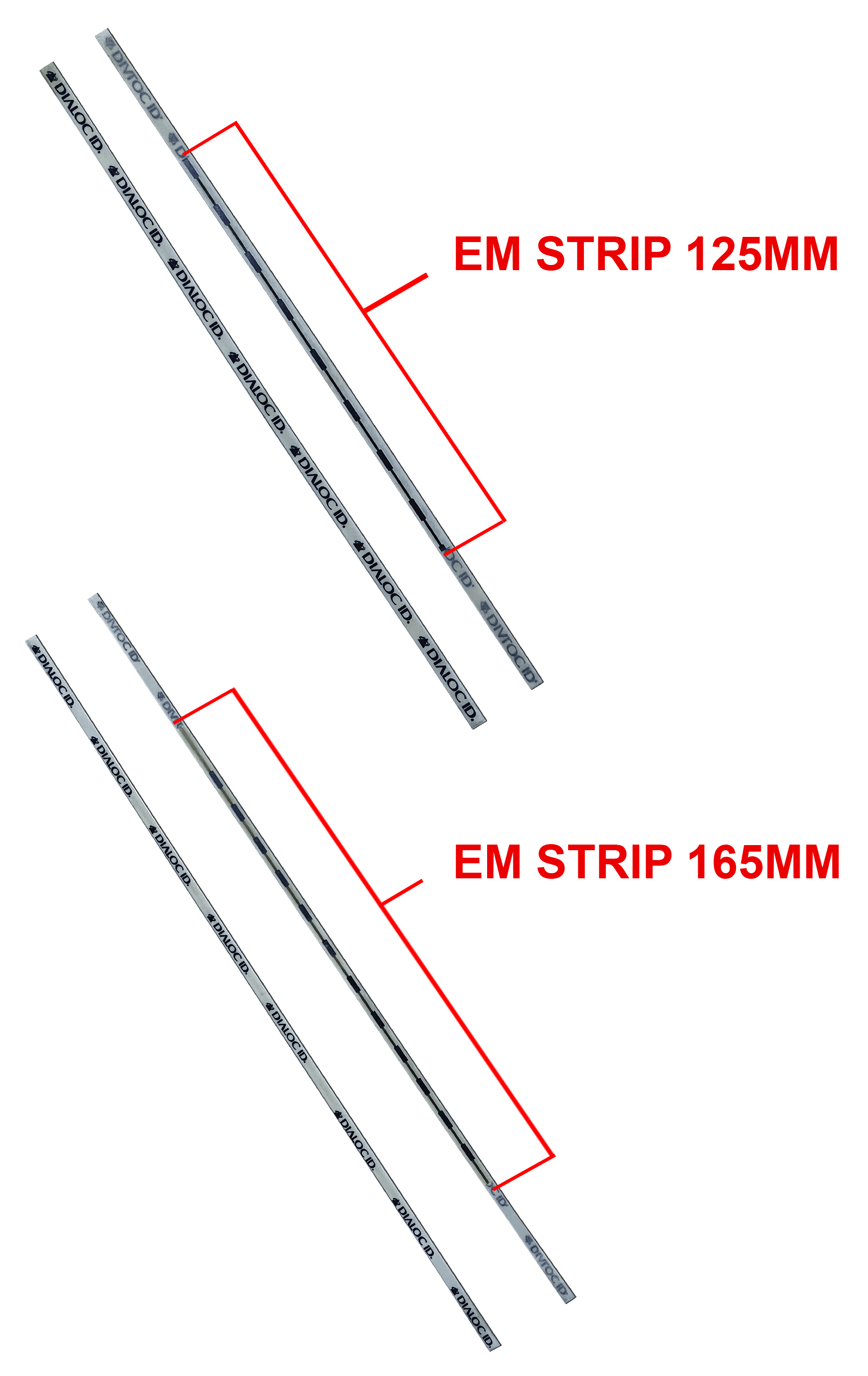

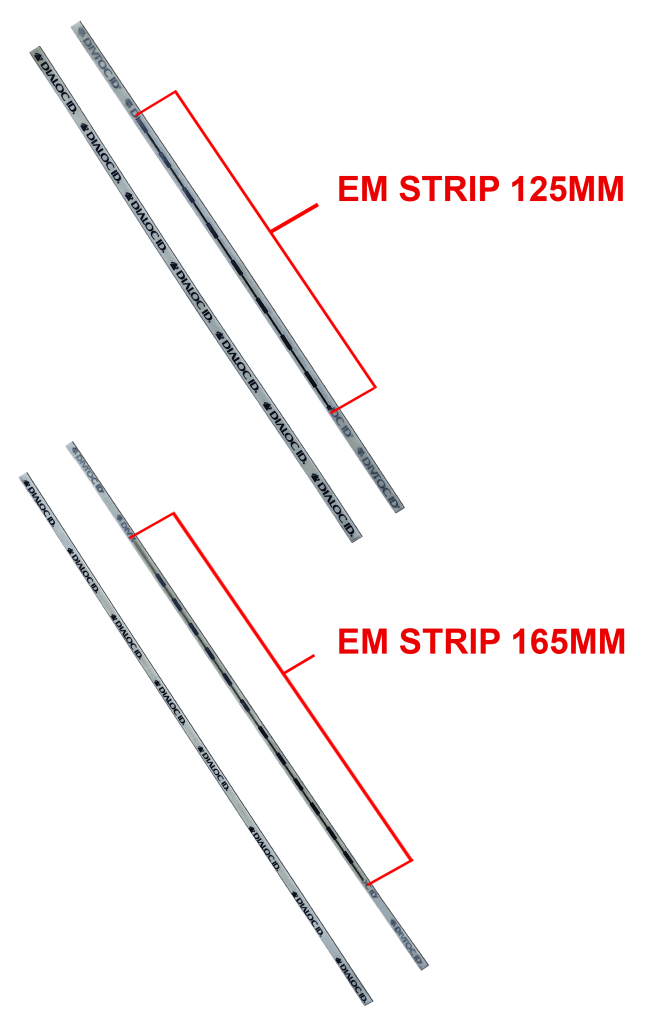

EM Strip
EM Strip, often referred to as “security tags” or “security strips,” are devices commonly used in libraries to prevent theft and unauthorized removal of library materials, such as books and magazines.
They are part of the overall security system that helps maintain the integrity of the library’s collection while ensuring a pleasant experience for library patrons. If a patron inadvertently walks out with a book that hasn’t been properly checked out, the alarm serves as a reminder to return or check out the item.
